Corner Crimping Machine

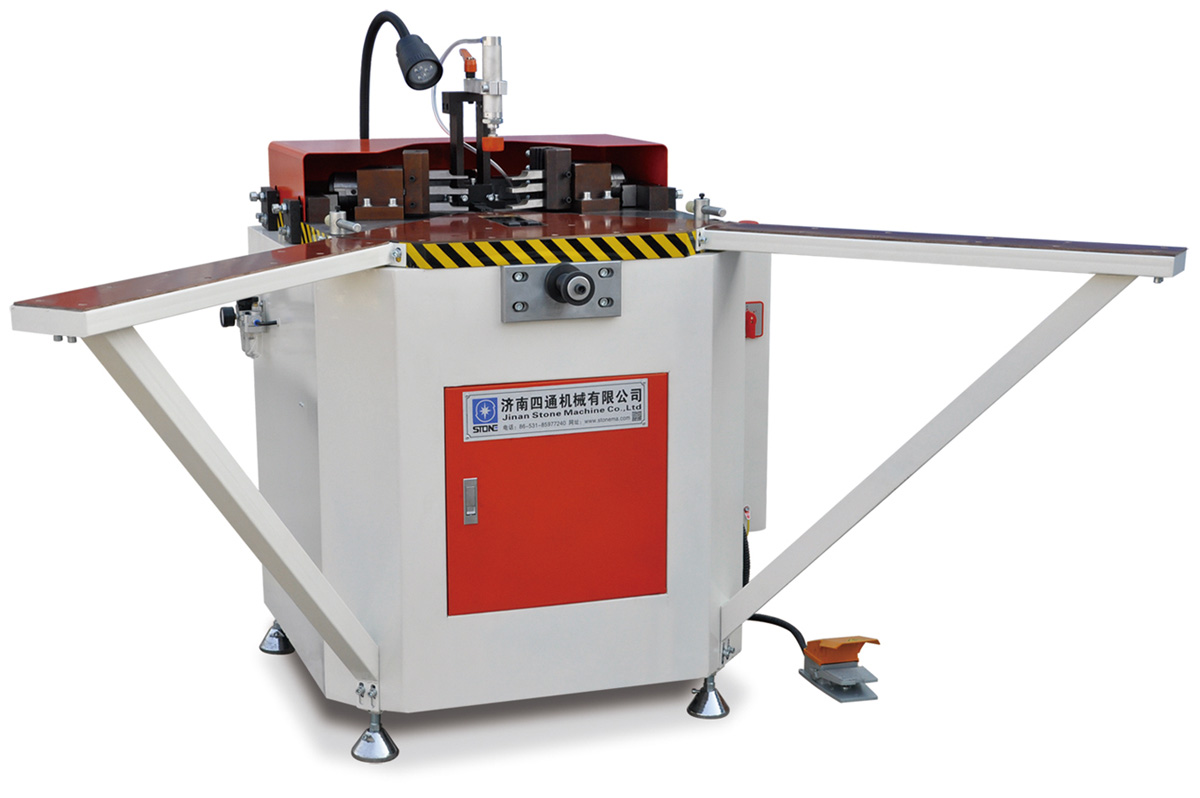

LZJ-04Alumimum Window Corner Crimping Machine


Product Details
Brief Introduction
This is a special machine in the production of high-grade aluminun windows and doors, used to make 90 degree corner joining of corner-connector type aluminum windows. Redesigned on the base of normal corner crimping machines,the machine has a sunk-lift locating system and a bigger work table, easy to load and unload profile, and more stable. Hydraulic-driving system can guarantees the strength of corner connection.

Technical Parameter
Input Power: 1.5Kw
Rated oil pressure: 15Mpa
Working Air Pressure: 0.5-0.8Mpa
Air consumption: 20L/min
Rated oil pressure: 10-15Mpa
Oil tank volume: 20L
Corner combining cylinder stroke: 98mm
Outside Dimension: 980*1350*1300mm
Weight (about) : 480Kg


Aluminum window corner crimping machine is major and essential equipment for manufacturing aluminum windows and doors. This kind of machines make permanently cold deformation on aluminum profile outer layers by pressing aluminum profiles with corner inside, making the corner connectors and aluminum profiles connected titghty to finish corner crimping. Corner crimping is the most important step for making aluminum windows and doors, and the quality of corner crimping (such as crimping strength, crimping accuracy) will affect the finished window quality directly. Stone Window Machine Company can provide CNC four-head aluminum corner crimping machine, double-head aluminum corner crimping machine, single-head corner crimping machine, and multi-bytes corner crimping machine.
