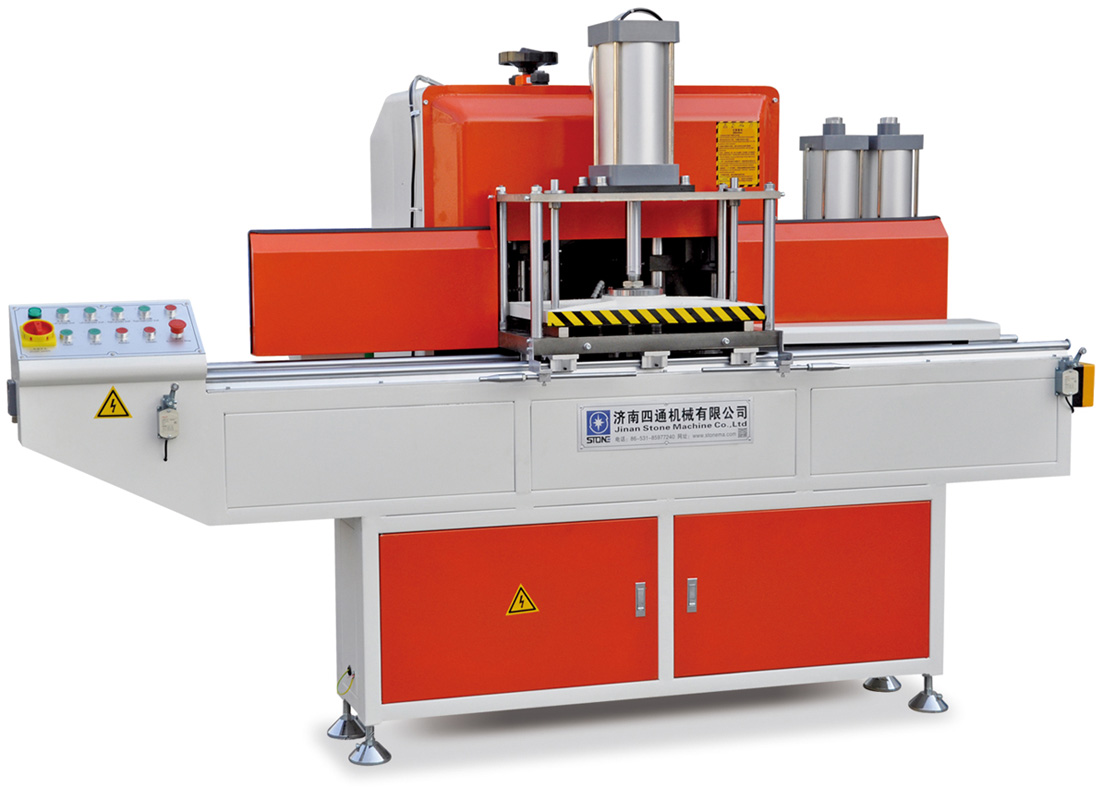

LXD-250BAluminum Door-window End-milling Machine

Brief Introduction
Aluminum door-window end-milling machine is used for end milling of mullion/transom profiles of aluminum windows. With a large work bench and long cutting stroke, it can mill 6-10 aluminum profiles with one operation. With adjustable cutting tools, it is unnecessary to replace multiple cutting tools in case of changing aluminum profiles so as to save the production period and cost of cutting tools. Multiple sets of cutting tools can work simultaneously or separately based on different profiles. With bigger diameter of cutting tools, the quality of machined surface is better. The end-milling machine is ideal equipment for mass production of aluminum doors and windows.

Features
Universal milling blades can be adjusted in up/down, left/right directions, which fits for different processing requirement and ensures the efficient working.
The air-hydraulic damping cylinder is used to push the feed of cutting tools to enable more stable operation
The thickened clamping plate can prevent the profile from deforming
Equipped with four horizontal milling cutters and one vertical saw blade, able to mill reinforced aluminum mullion profiles.

Technical Parameter
Power Supply: 380V 50Hz (optional)
Input Power: 8.8KW
Working Air Pressure: 0.5-0.8MPa
Air Consumption: 150L/min
Motor Rotational Speed: 2800r/min
Main Shaft Diameter: 32mm
Milling Cutter Diameter: 250mm
Outside Dimension: 2900*1200*1800mm
Weight (about):600Kg

---

Aluminium window milling machines are used to process hardware installation holes and slots, profile end and other holes or slots in aluminium windows and doors, and it is an important component part of aluminium window production line. Milling hardware holes or slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of aluminium windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. Aluminium window milling machines include end milling machine, lock hole & slot milling machine, copy routing machine, and so on.
