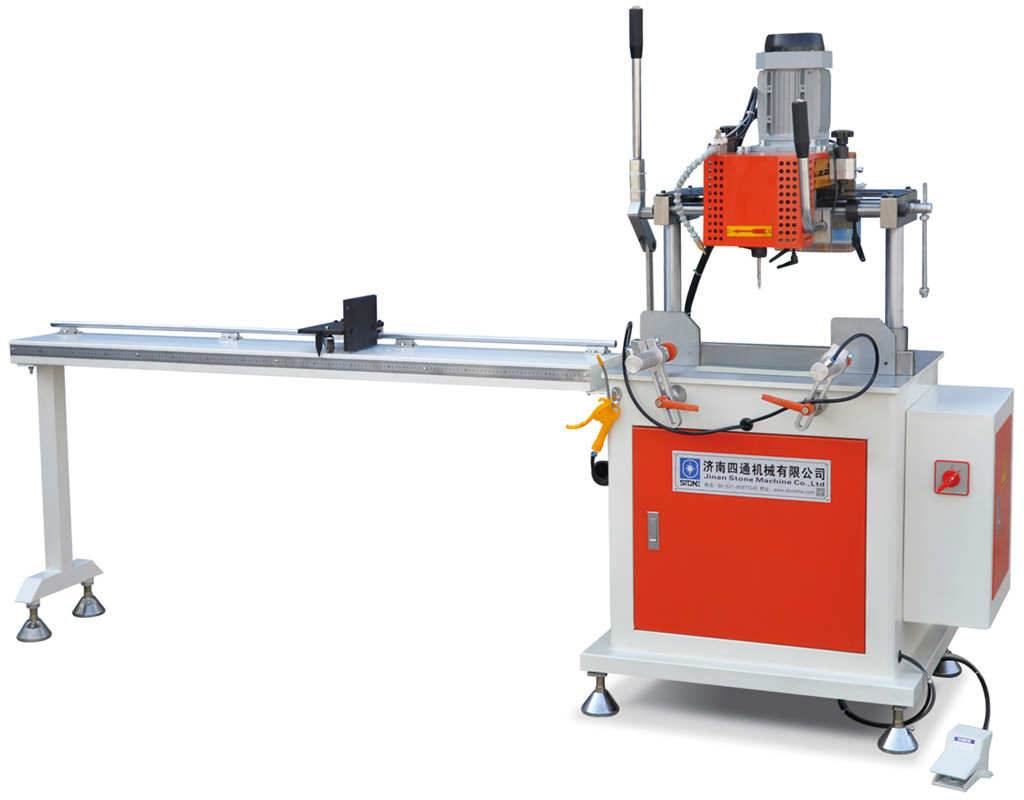

LSX-100GHigh-speed Single-head Copy-routing Machine

Brief Introduction
The machine is used for the copy-routing of water slots, pulley holes, lock holes and other hardware holes of aluminum and uPVC doors & windows. Equipped with a 1.1Kw motor and top-bottom roller bearings, the machine has the advantage of strong power and running stability. Belt acceleration, high speed milling. Special copy-routing template can be make to order, so as to meet different hardware assembly hole's processing requirement. Horizontal pneumatic clamping, easy to load and unload profiles.

Features
The latest improvement of bearing seat structure, the belt easily replaced, become a more complete products structure.
Precision linear bearing guide rail, make the cutter movement smooth and flexible, easy to operate.
It makes the milling cutter easy to clamp for its high standard milling cutter and main axis taper from precision work.
Excellent gas oil atomization cooling system makes the milling effect better, cutting tool durable.

Technical Parameter
Power Supply: 380V 50Hz (optional)
Input Power: 1.5KW
Working Air Pressure: 0.4-0.6Mpa
Air Consumption: 30L/min
Copy-Routing Range: 90*290mm
Outside Dimension: 700*700*1500mm

---
