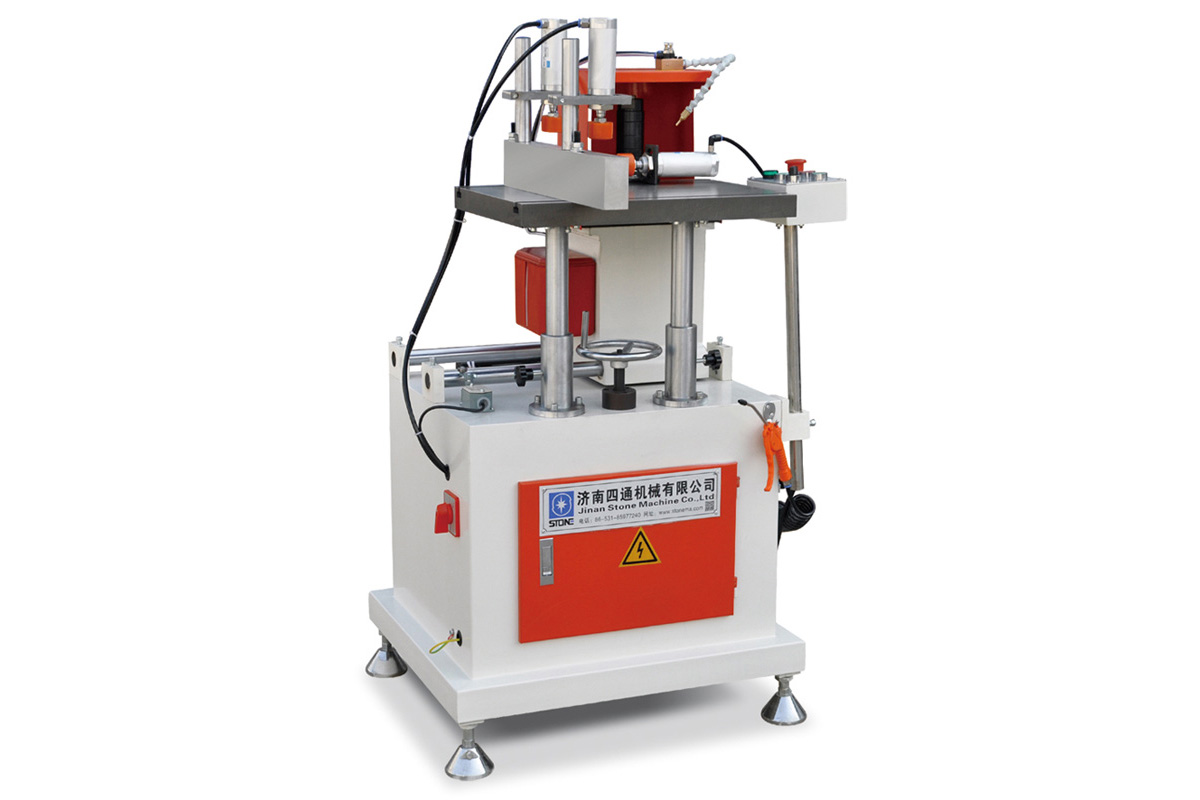

LXD-200End-milling Machine for Aluminum & uPVC Profile

Brief Introduction
The End-milling Machine for Aluminum & uPVC Profile is the special equipment used for aluminum profile end milling. The machine can be used for the end milling of screw-connection mullion profiles and split-jointing profiles of uPVC and aluminum door & window. By changing different milling cutters, the end milling machine can process step sections, rectangular slots and tenon of uPVC or aluminum profiles. Miter end milling can be achieved through rotating the profile stop. The end milling machine is the ideal choice for manufacturing screw-connection and split-jointing aluminum and uPVC doors & windows.

Technical Parameter
Power Supply: 380V 50Hz (optional)
Input Power: 1.5KW
Working Air Pressure: 0.4-0.6MPa
Air Consumption: 150L/min
Motor Rotational Speed: 2800r/min
Main Shaft Diameter: 32mm
Milling Cutter Diameter: 110-200mm
Outside Dimension: 850*740*1280mm
Weight (about): 150Kg

---

Aluminium window milling machines are used to process hardware installation holes and slots, profile end and other holes or slots in aluminium windows and doors, and it is an important component part of aluminium window production line. Milling hardware holes or slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of aluminium windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. Aluminium window milling machines include end milling machine, lock hole & slot milling machine, copy routing machine, and so on.
