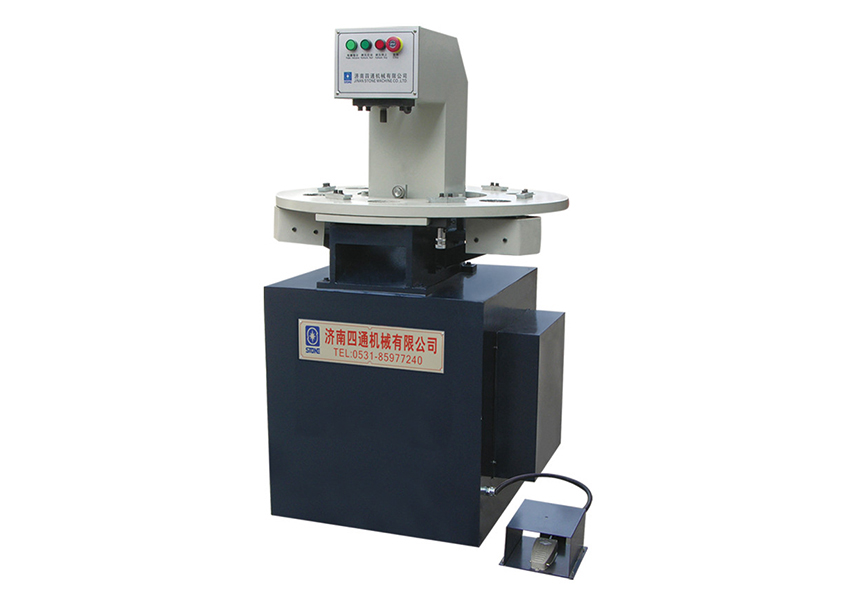

LY-63Pressing Machine for Aluminum Profile

Brief Introduction
Pressing Machine for Aluminum Profile LY-63 is used to punch and cut various profiles for aluminum door & window. Open-type construction enables flexible operation positions. Rotatable work table enables convenient switchover among six sets of molds. The aluminum profile pressing machine is convenient to install single-position mold and can also realize multi-position punching and cutting. The hydraulic power is stable and the pressure is big, so it can adapt to complex punching and cutting procedure. This aluminum profile pressing machine is ideal equipment for mass production of aluminum doors and windows.

Technical Parameter
Power Supply: 380V50Hz
Input Power: 2.2KW
Motor Rotational Speed:  1420 r/min
Rated Oil Pump Pressure: 16Mpa
Oil Tank Volume: 20L
Nominal Pressure: 50KN
Punching Stroke:  30mm
Stroke Times: 30 times/min
Closing Height: 185mm
Outside Dimension: 900*900*1413mm
Weight (about): 380kg

---

Pressing Machine for Aluminum Profile is used to punch and cut various profiles for aluminum door & window. Open-type construction enables flexible operation positions. Rotatable work table enables convenient switchover among six sets of molds.
The aluminum door-window punching machine can punch grooves for handles and drain slots, cut corners, and punch holes (φ10mm, φ6mm) for transmitter ends.
