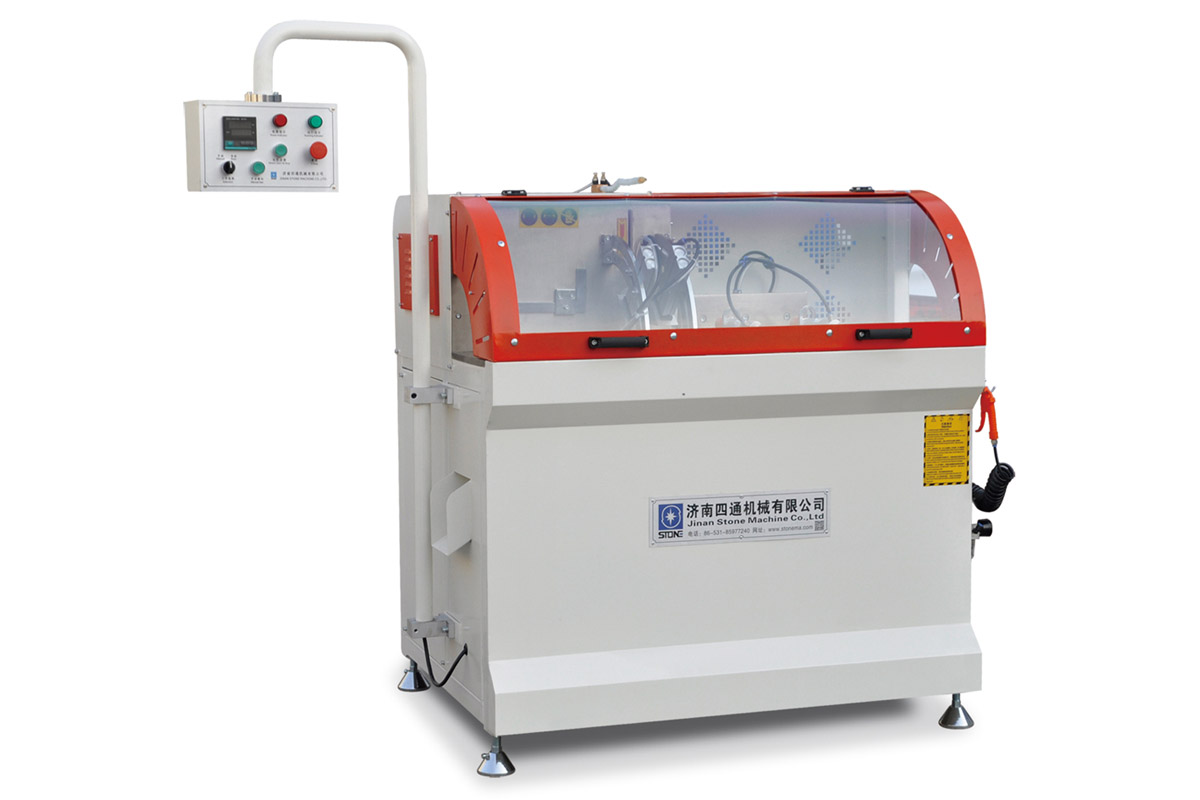

LJJ-140AAluminum Door-window Corner Connector Automatic Cutting Saw

Brief Introduction
The Aluminum Door-window Corner Connector Cutting Saw is an automatic machine specially designed to cut aluminum door-window corner connector profiles. The cutting machine is equipped with automatic pneumatic profile feeding system, and what you have to do is to place the profile and all the other operation is finished automatically. The machine can meet the requirement of corner-connector cutting when manufacturing thermal-break aluminum windows and doors, with the advantage of high-accuracy and high-efficiency, and is ideal equipment for mass production of aluminum windows and doors.

Features
Digital display for cutting length.
Special high-accuracy hard-alloy saw blade, equipped with automatic spray cooling system.
Stable and uniform motion of saw blades feeding through hydro-pneumatic damping cylinders.
High-accuracy headstock guarantees the stable running of saw blades.
Safety cover secures the operator against injury from high-speed rotation saw blades.
Horizontal profile clamping cylinders and guide clamp device ensure no residual sharp corner even cutting 3mm corner connector.
Equipped with profile supporter for long aluminum connector profiles.

Technical Parameter
Model: LJJ-140A
Power Supply: 380V 50Hz (optional)
Input Power: 2.2 Kw
Working Air Pressure: 0.4-0.6MPa
Blade Rotational Speed: 3100r/min
Saw Blade Specification: D=500mm d=30mm
Cutting Length: 3-100mm
Cutting Width*Height: 135*200mm
Cutting Angle: 90°
Outside Dimension: 1350×1480×1270mm
Weight (about): 580Kg

---

Aluminum profile cutting machine is major and essential equipment for manufacturing aluminum windows and doors. Cutting is the beginning of making aluminum windows, and one of most important manufacturing procedures in the whole window manufacturing process. The cutting accuracy (such as accuracy error of cutting length, accuracy error of cutting angle) will affect the corner crimping accuracy and corner crimping strength of aluminum windows, and then affect the size accuracy and angle accuracy of finished aluminum windows. STONE Window Machinery guarantees the cutting quality of the aluminum profile cutting machine through use of high quality hard-alloy saw blades, high accuracy liner bearing motional pairs and headstock, and other high quality machine components, and through our strict quality control system. Aluminum profile cutting machines mainly includes double-head cutting saw, single-head cutting saw, corner connector cutting saw, and so on.
