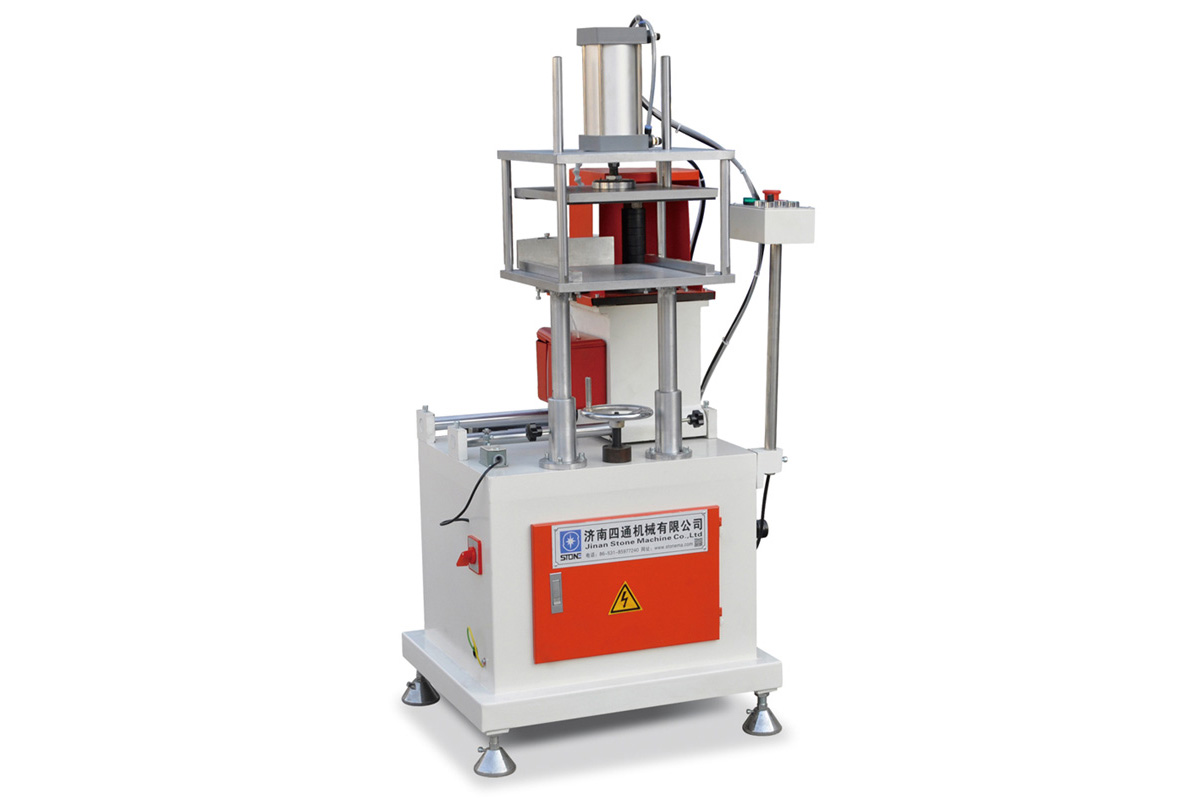

LXD-200BEnd-milling Machine for Aluminum & uPVC Profile

Brief Introduction
The machine is the special equipment used for aluminum profile end milling. It can be used for special-shaped profile surface milling for uPVC and aluminum door & window. It can mill different sections through changing the cutters. Clamping and end-milling several aluminum profiles at one time, applicable for mass production of aluminum windows and doors with split joint or spiro union.

Technical Parameter
Power supply: 380V 50Hz
Input power: 1.5Kw
Air pressure: 0.5-0.8Mpa
Air consumption: 80L/min
Motor rotational speed: 2800r/min
Main shaft diameter: φ32mm
Milling cutter diameter: φ110-200mm
Outside dimension: 850*740*1350mm
Weight(about): 200kg

---

Aluminium window milling machines are used to process hardware installation holes and slots, profile end and other holes or slots in aluminium windows and doors, and it is an important component part of aluminium window production line. Milling hardware holes or slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of aluminium windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. Aluminium window milling machines include end milling machine, lock hole & slot milling machine, copy routing machine, and so on.
