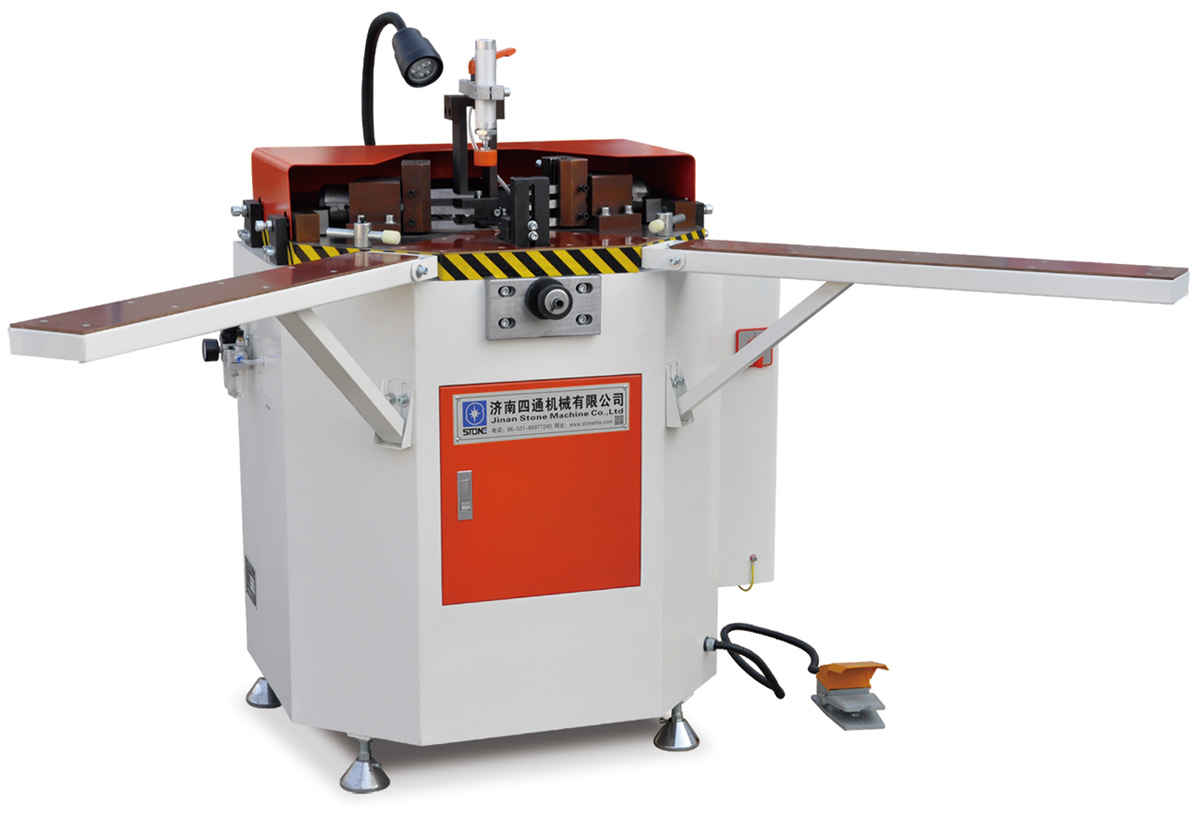

LZJ-02Alumimum Window Corner Crimping Machine

Brief Introduction
The aluminum corner crimping machine is used for 90 degree corner joining of aluminum profiles. The left and right crimping knives, driven by hydraulic system though a joint-action device, feed synchronously, which guarantees the accuracy and strength of corner crimping and improve the quality of aluminum doors and windows greatly. Place a corner connector into the cavity of the two profiles before corner crimping, and the hydraulic-driven crimping knives make permanently cold deformation on aluminum profile outer layers. Single-head aluminum corner crimping machine is basic equipment for aluminum doors and windows, easy to operate, economical and practical.

Features
The left and right crimping knives feed synchronously.
Powerful hydraulic system provides strong and stable pressing force for crimping knives, ensuring big punching and riveting force and high strength of corner connection.
Height of crimping knives and depth of crimping can be adjusted to meet requirement of different aluminum profile types.
Profile clamping is pneumatic, and the feeding movement of crimping knives is hydraulic.

Technical Parameter
Power supply: 380V 50Hz (optional)
Input power: 3.0Kw
Air pressure: 0.4~0.6Mpa
Air consumption: 2L/min
Rated oil pressure: 16Mpa
Oil tank volume: 20L
Crimping cylinder stroke: 0~98mm
Outside dimension: 830×1000×1200mm
Weight (about) : 380Kg

---

Aluminum window corner crimping machine is major and essential equipment for manufacturing aluminum windows and doors. This kind of machines make permanently cold deformation on aluminum profile outer layers by pressing aluminum profiles with corner inside, making the corner connectors and aluminum profiles connected titghty to finish corner crimping. Corner crimping is the most important step for making aluminum windows and doors, and the quality of corner crimping (such as crimping strength, crimping accuracy) will affect the finished window quality directly. Stone Window Machine Company can provide CNC four-head aluminum corner crimping machine, double-head aluminum corner crimping machine, single-head corner crimping machine, and multi-bytes corner crimping machine.
