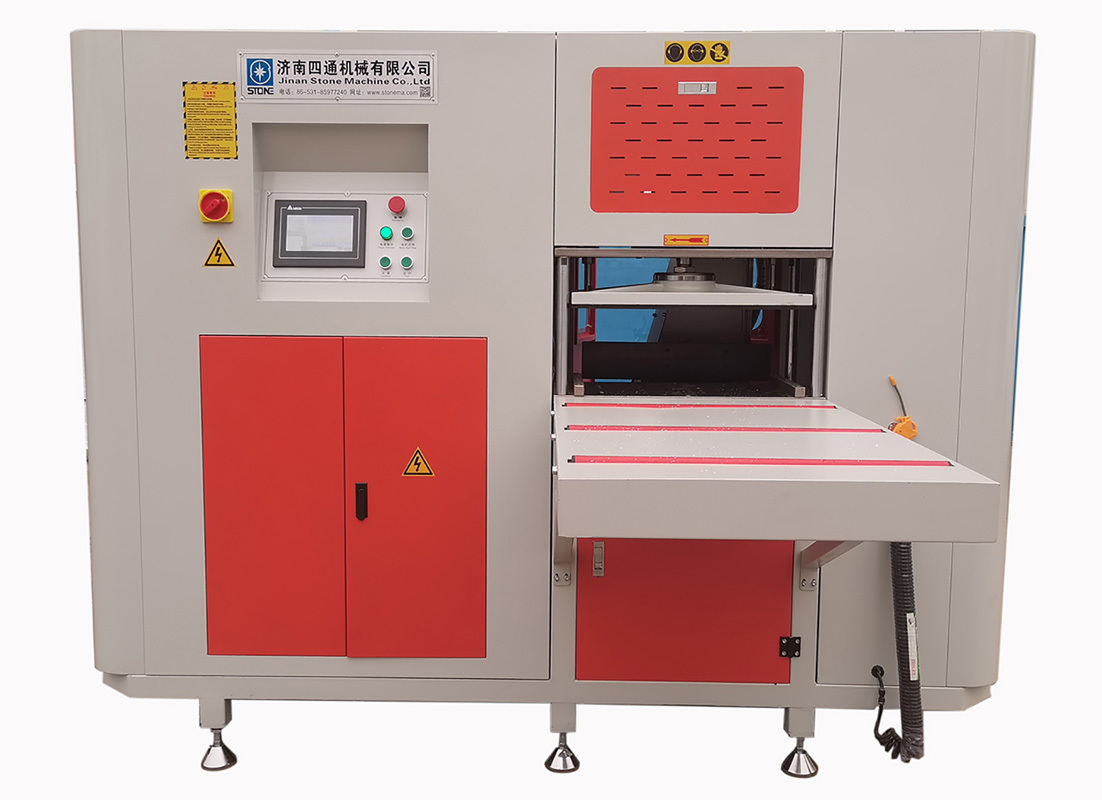

LXD3-CNC-300CNC 3-axis End-milling machine for Aluminum Profile

Brief introduction
This machine is one of the first CNC three-axis special equipment for processing aluminum door and window materials in China.It is suitable for the forming processing of various profile end faces, step faces, edge cutting, rectangular holes and slots, etc. Different profiles can be processed by adjusting the position of the cutter without changing the cutter.The equipment absorbs the advantages of similar products at home and abroad. It is a new model carefully developed and produced by our company. It has compact structure, wide processing range, convenient operation and high production efficiency.

Features
Adopt high-precision CNC system control, three-axis linkage.
The cutter can be adjusted up and down, back and forth through numerical control, with high milling precision and quick and convenient adjustment, so as to adapt to the processing of aluminum profiles with different shapes and sizes.
Adopt servo motor, gear and rack structure to drive the cutter to feed, adjustable feed speed, slow cutting, high speed back, more stable and efficient processing.
The special spindle motor is equipped with two fixed horizontal milling cutters, which can be turned 90 ° through the cylinder, and can be used to strengthen the milling of the middle section.
The feed travel distance can be controlled by the system, which greatly improves the processing efficiency.
Thickened profile pressing plate to prevent profile deformation.
Fully enclosed mechanical outer cover structure is adopted, which makes the processing safer, more environmentally friendly and more sanitary.

Technical Parameter
Input power: 380 V 50Hz
Input power: 5.5 Kw
Working pressure: 0.5-0.8 Mpa
Air consumption: 100L/min
Motor speed: 2800r/min
Spindle diameter: φ30mm
Milling cutter diameter: φ 300 mm
Dimension: 2600×1400×1700mm

---

Aluminium window milling machines are used to process hardware installation holes and slots, profile end and other holes or slots in aluminium windows and doors, and it is an important component part of aluminium window production line. Milling hardware holes or slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of aluminium windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. Aluminium window milling machines include end milling machine, lock hole & slot milling machine, copy routing machine, and so on.
