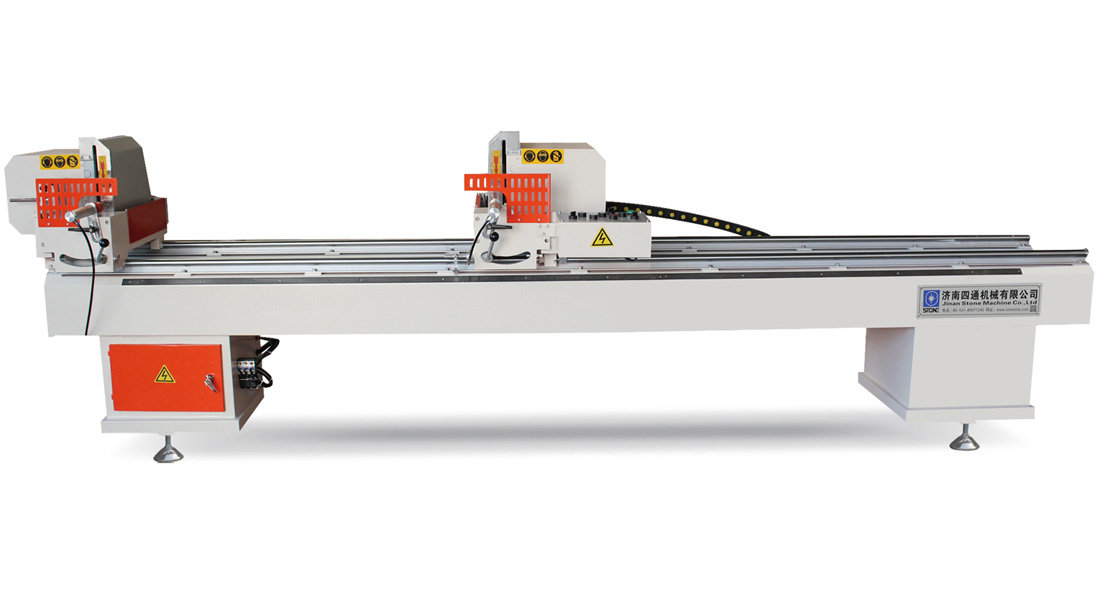

LSJ-3500Double-head Cutting Saw for Aluminum & uPVC Profile

Brief Introduction
Double-head Cutting Saw is used to uPVC profiles at angles of 90°, 45°. Pneumatic driving system and linear feeding ensures the stable running. The two heads can work individually or simultaneously. With the features of pneumatic control, compact construction, simple operation, stable running, high safety and high efficiency, this double–head cutting saw is one of essential uPVC profile cutting equipment.
Remarks: Patented product with patent number ZL 2004 2 0052847.6

Features
High accuracy through hard-alloy saw blades.
The two working head can work individually or simultaneously.
Meet the requirement for both cutting length and cutting angle in single working operation.
Special locating plates for transom profile cutting.
Equipped with sawdust cleaning system (optional).

Technical Parameter
Power Supply: 380V 50Hz (optional)
Input Power: 2.2KW
Working Air Pressure: 0.4-0.6Mpa
Air Consumption: 200L/min
Blade Rotational Speed: 2800r/min
Saw Blade Specification: D=450mm d=30mm
Cutting Length: 450-3500mm
Cutting Height: ≤105mm
Cutting Width: ≤120mm
Cutting Angles: 90°, 45°
Outside Dimension: 4000×900×1500mm
Weight(about): 600Kg

---

uPVC profile cutting machine is major and essential equipment for manufacturing uPVC windows and doors. Cutting is the beginning of making uPVC windows, and one of most important manufacturing procedures in the whole window manufacturing process. The cutting accuracy (such as accuracy error of cutting length, accuracy error of cutting angle) will affect the welding accuracy and welding strength of uPVC windows, and then affect the size accuracy and angle accuracy of finished uPVC windows. STONE Window Machinery guarantees the cutting quality of the uPVC profile cutting machine through use of high quality hard-alloy saw blades, high accuracy liner bearing motional pairs and headstock, and other high quality machine components, and through our strict quality control system. uPVC profile cutting machines mainly includes double mitre saw, V-notch saw, glazing bead saw, and so on.
