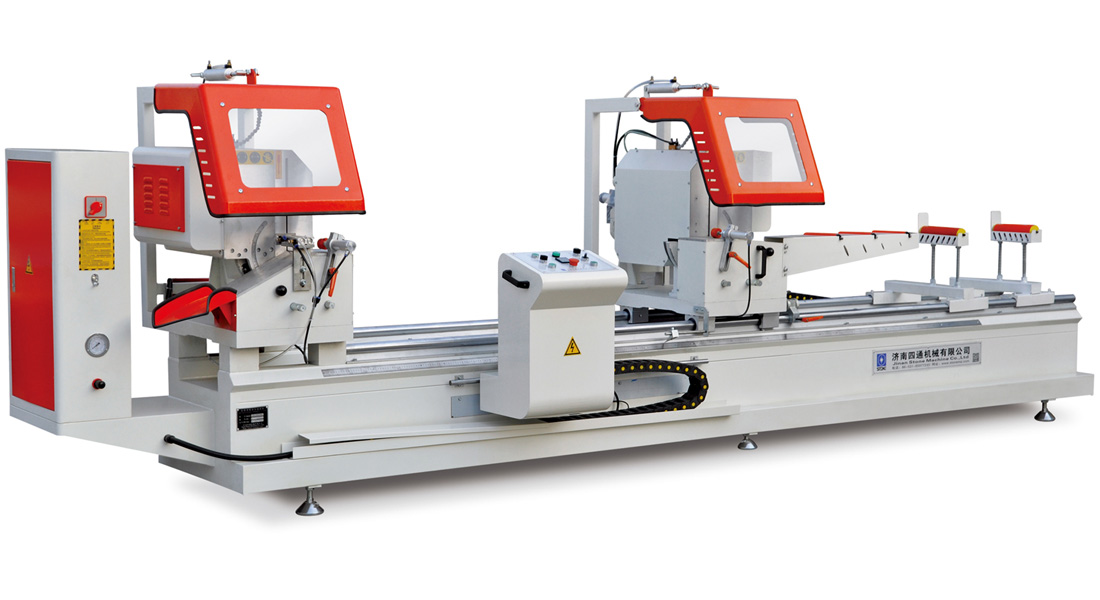

LJZ2-450×3700Double-head Cutting Saw for Aluminum & uPVC Profile

Brief Introduction
The Double-head Cutting Saw is used to process the aluminum and plastic profiles at angles of -45°, 90°, and 45°. Pneumatic driving system and linear feeding ensures the stable running. The movement of the movable head is driven by a motor, easy to operate. The machine has the advantages of good rigidity, reliable operation, high accuracy, large processing range and high efficiency. This double –head cutting saw is one of essential uPVC and aluminum profile cutting equipment.

Features
Right cutting head moved driven by a motor.
High accuracy through hard-alloy saw blades.
Stable saw blades feeding through Hydro-pneumatic Damping Cylinders.
The two working head can work individually or simultaneously.
Saw units rotate outward and inward achieving the cutting of -45°, 90°, 45°.
Meet the requirement for both cutting length and cutting angle in one-time cutting.
Special locating plates for transom profile cutting.
Equipped with sawdust cleaning system (optional).

Technical Parameter
Power Supply: 380V 50Hz (optional)
Input Power: 3.6KW
Working Air Pressure: 0.5-0.8Mpa
Air Consumption: 200L/min
Blade Rotational Speed: 3087r/min
Saw Blade Specification: D=450mm, d=30mm
Cutting Length: 580-3700mm
Cutting Angles: -45°-90°-45°
Outside Dimension: 4500*1100*1400mm
Weight (about) : 1250Kg

---

uPVC profile cutting machine is major and essential equipment for manufacturing uPVC windows and doors. Cutting is the beginning of making uPVC windows, and one of most important manufacturing procedures in the whole window manufacturing process. The cutting accuracy (such as accuracy error of cutting length, accuracy error of cutting angle) will affect the welding accuracy and welding strength of uPVC windows, and then affect the size accuracy and angle accuracy of finished uPVC windows. STONE Window Machinery guarantees the cutting quality of the uPVC profile cutting machine through use of high quality hard-alloy saw blades, high accuracy liner bearing motional pairs and headstock, and other high quality machine components, and through our strict quality control system. uPVC profile cutting machines mainly includes double mitre saw, V-notch saw, glazing bead saw, and so on.
