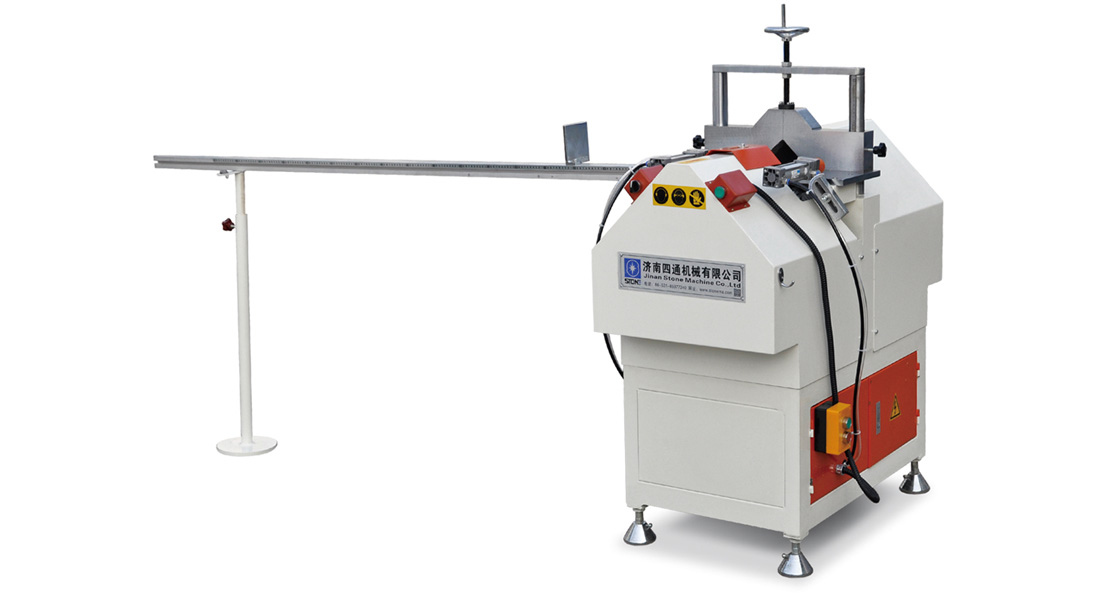

SVJ-65V-notch Saw for uPVC Profile

Brief Introduction
The V-notch Saw is used for processing 90° V-Shaped notch of uPVC profiles. Two saw blades at an angle of 90 degree to each other and driven by a large-stroke cylinder, finish V-notch cutting in single working operation. With the features of pneumatic driving, easy operation, long use life and high efficiency, this V-notch saw is one of essential equipments for manufacturing European-style uPVC windows.

Features
The height of the worktable is adjustable up-and-down to adjust the depth of V-notch.
Equipped with a scale on the vertical rod, easy to adjust the height of worktable.
Two saw blades are installed two motors separately, providing enough cutting force.
Cutting the V-notch at the bottom of profiles, which avoids the influence on the depth of V-notch from different profile types.

Technical Parameter
Power Supply: 380V 50Hz (optional)
Input Power: 1.5KW
Working Air Pressure: 0.4-0.6MPa
Air Consumption: 100L/min
Motor Rotational Speed: 2800r/min
Notch depth: ≤65mm
Processing range (length): 300-1700mm
Outside Dimension: 1350*500*1350mm
Weight: 210Kg

---

uPVC profile cutting machine is major and essential equipment for manufacturing uPVC windows and doors. Cutting is the beginning of making uPVC windows, and one of most important manufacturing procedures in the whole window manufacturing process. The cutting accuracy (such as accuracy error of cutting length, accuracy error of cutting angle) will affect the welding accuracy and welding strength of uPVC windows, and then affect the size accuracy and angle accuracy of finished uPVC windows. STONE Window Machinery guarantees the cutting quality of the uPVC profile cutting machine through use of high quality hard-alloy saw blades, high accuracy liner bearing motional pairs and headstock, and other high quality machine components, and through our strict quality control system. uPVC profile cutting machines mainly includes double mitre saw, V-notch saw, glazing bead saw, and so on.
