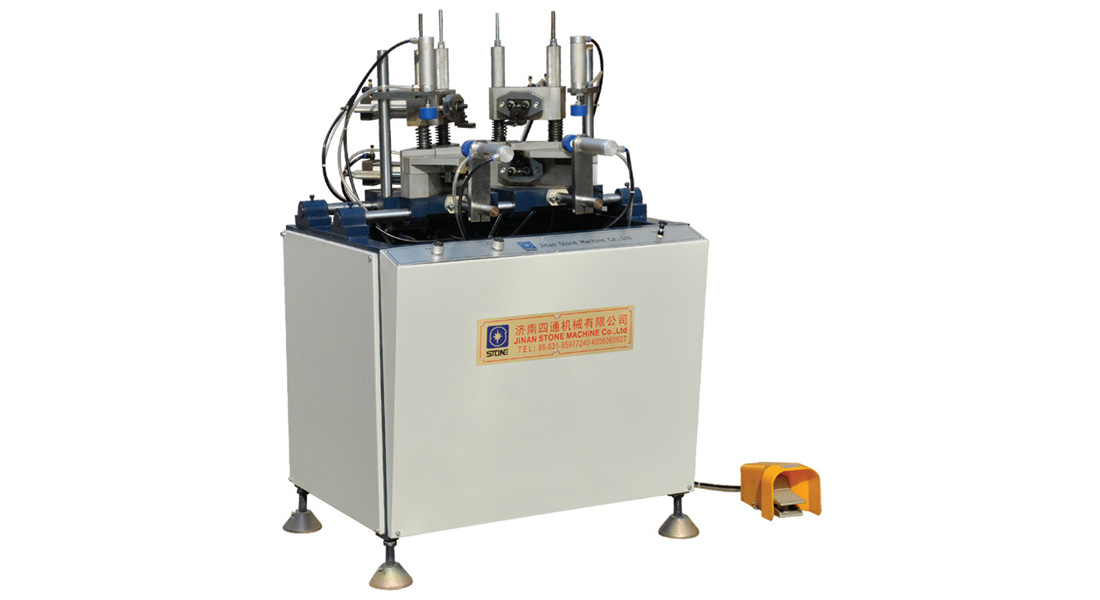

SQJ05-120V-shape Corner Cleaning Machine for uPVC Window Mullion

Brief Introduction
This V-shape Corner Cleaning Machine is used for cleaning V-shaped weld seams or cross weld seams on welded window transoms of uPVC door & window. Pneumatic clamping and pneumatic drive cleaning are adopted. One-time profile clamping can finish the cleaning of the upper and bottom surface of the uPVC profile. It has the features of advanced technology, high reliability and easy operation. The machine is an ideal corner cleaning equipment for European style uPVC windows and doors.

Features
Pure pneumatic design, electric-free.
Upper pulling blades can be adjusted according to the uPVC profile height.
Profile clamping devices with swing bars guarantees the stability of clamping.

Technical Parameter
Air pressure: 0.4~0.6Mpa
Air consumption: 150L/min
Groove processing width: 3mm
Processing profile depth: ≤0.3mm
Processing profile height: 35~120mm
Processing profile width: 20~120mm
Outside dimension: 860×650×1120mm
Weight (about): 160Kg

---

uPVC window corner-cleaning machine is specially used to clean weld seams on uPVC windows and doors, and it is one of major uPVC window machines. After uPVC profiles are heated, melted, and welded to form window frames or sashes, of which there will be weld seams (weld beadings) on the corners. Cleaning these weld seams with a corner-cleaning machine will not only ensure the beautiful outfit of uPVC windows, but guarantees the weld strength and increases the productivity of uPVC windows and doors.
