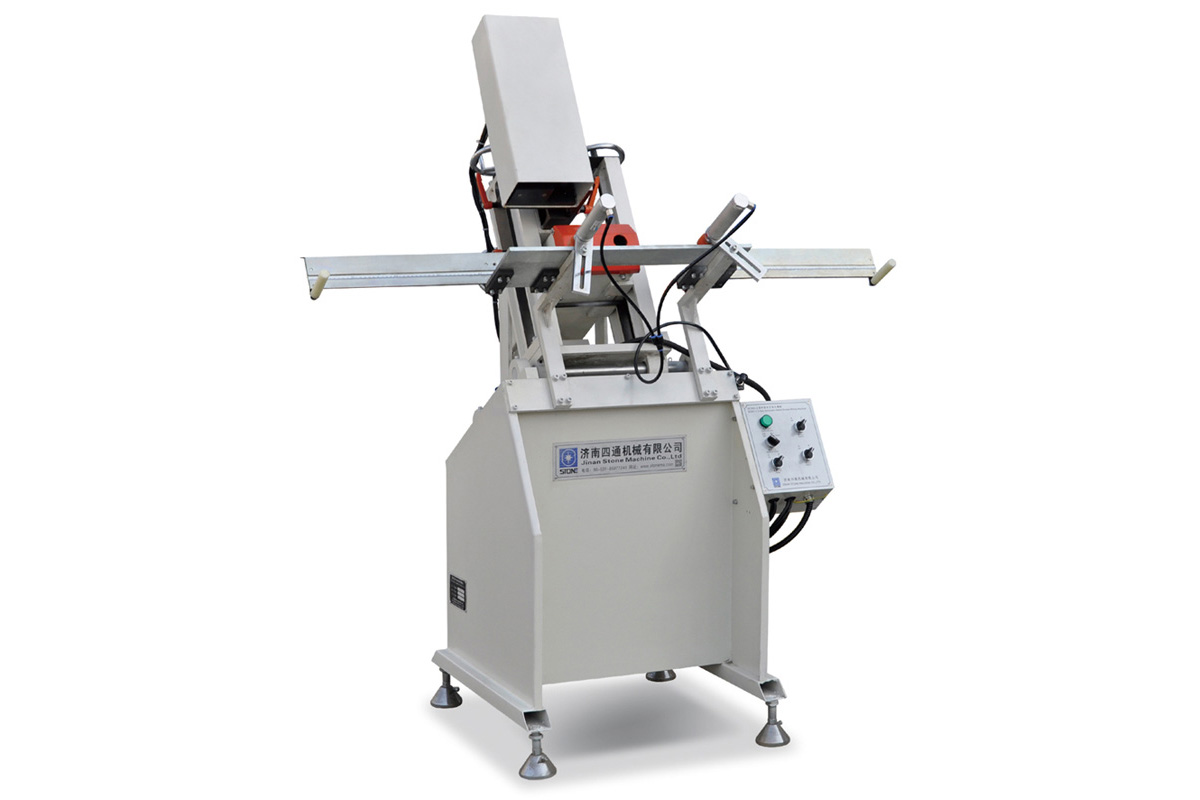

SCX01-2Water Slot Milling Machine for uPVC Profile

Brief Introduction
The Water Slot Milling Machine is used for processing various water slots and air-pressure balance grooves. Top milling unit is angularly adjustable in the angle range between 0°-45°, and water slot milling length adjustable in the range of 0-50mm. The milling unit can be adjusted forward, backward, upward and downward. One-time clamp can achieve the simultaneous processing with multiple directions. It has the features of high efficiency, reliability, high accuracy and easy operation.

Features
Pneumatic driving, automatic processing.
Equipped with two (SCX01-2) or three (SCX01-3) milling unit, selecting milling units according to actual need.

Technical Parameter
Model: SCX01-2
Power supply: 220V 50Hz (optional)
Input power: 0.5Kw*2
Air pressure: 0.6-0.6Mpa
Air consumption: 30L/min
Length of slots: Max. 40mm
Milling cutter diameter: 4mm or 5mm
Motor rotational speed: 25000r/min
Outside dimension: 1200*860*1660mm
Weight(about): 200Kg

Model: SCX01-3
Power supply: 220V 50Hz (optional)
Input power: 0.5Kw*3
Air pressure: 0.6-0.6Mpa
Air consumption: 40L/min
Length of slots: Max. 40mm
Milling cutter diameter: 4mm or 5mm
Motor rotational speed: 25000r/min
Outside dimension: 1200*860*1660mm
Weight(about) : 240Kg

---

uPVC window milling machines are used to process hardware installation holes and slots, water slots, air-pressure balance grooves and other holes or slots in uPVC windows and doors, and it is an important component part of uPVC window production line. Milling hardware holes or slots and water-slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of uPVC windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. uPVC window milling machines include water slot milling machine, lock hole & slot milling machine, copy routing machine, and so on.
