uPVC Milling Machine

SZJ01Lock Hole & Slot Milling Machine for uPVC Door & Window


Product Details
Brief Introduction

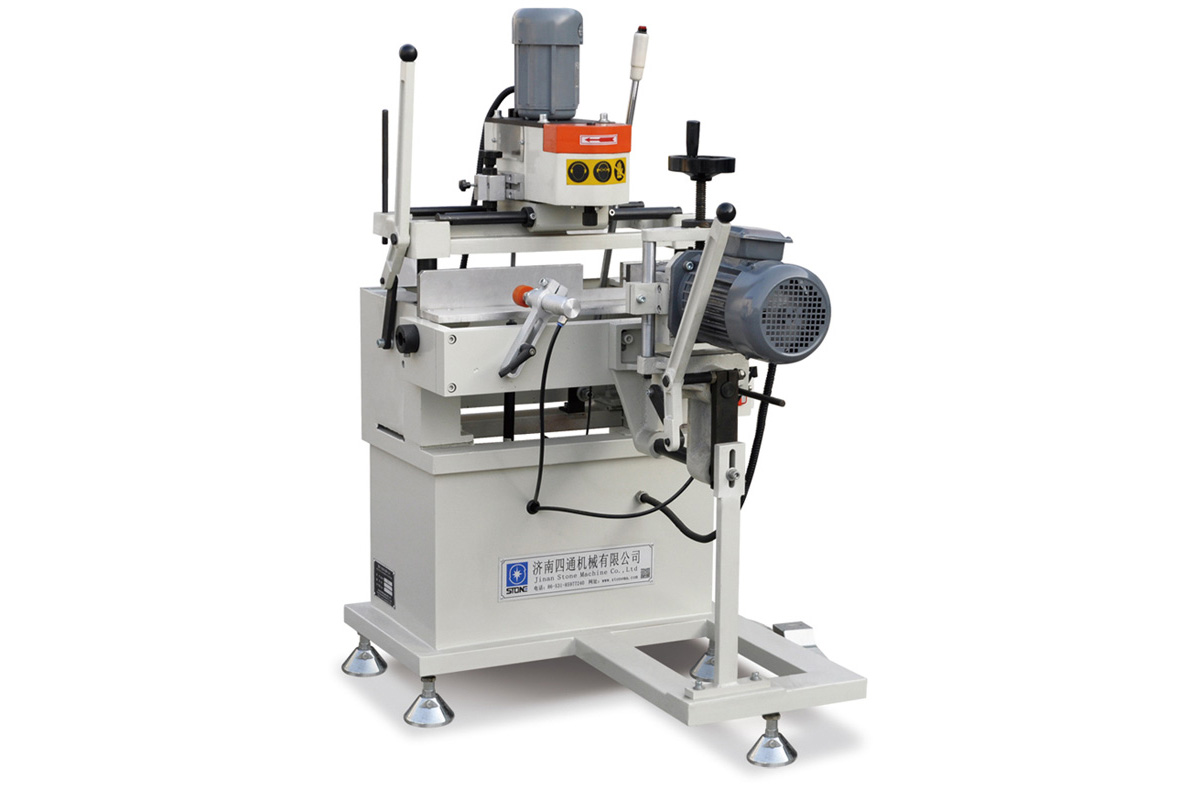

The Lock Hole & Slot Milling Machine is a special machine used for processing holes and slots of uPVC door & window. It consists of a triple drilling unit and a copy routing unit, which can achieve horizontal triple-hole drilling and vertical copy-routing separately. The triple drilling bits driven by a motor through a gearbox, pushed by a feeding rod, can finish triple-drilling on horizontal direction. The milling bits can finish high-speed copy-routing on vertical direction, driven by a motor through a drive belt. The copy routing unit is equipped with a template, on which the copy-routing pin moves along the inner side of copy-routing holes or slots to make the milling bit finish copy-routing at the ratio 1:1. One-time clamping can achieve two working procedures which ensures the precise position of the holes and slots in uPVC windows and doors.

Features
Acceleration with a belt to achieve high-speed milling in copy-routing unit. Equipped with a gearbox in the triple-drilling unit to guarantee the accuracy and stability of drilling.
Triple-drilling unit can drill the uPVC profiles with steel reinforcement inside.
Able to copy route both uPVC profiles and aluminum profiles.
Templates can be made to order to meet the requirement of different installation holes and slots of window hardware.

Technical Parameter
Power Supply: 380V 50Hz (optional)
Input Power: 1.85KW
Working Air Pressure: 0.4-0.6Mpa
Air Consumption: 30L/min
Copy-Routing Range: 300*100mm
Motor Speed: 2800r/min
Outside Dimension: 1000*1130*1500mm
Weight: 250Kg


uPVC window milling machines are used to process hardware installation holes and slots, water slots, air-pressure balance grooves and other holes or slots in uPVC windows and doors, and it is an important component part of uPVC window production line. Milling hardware holes or slots and water-slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of uPVC windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. uPVC window milling machines include water slot milling machine, lock hole & slot milling machine, copy routing machine, and so on.
