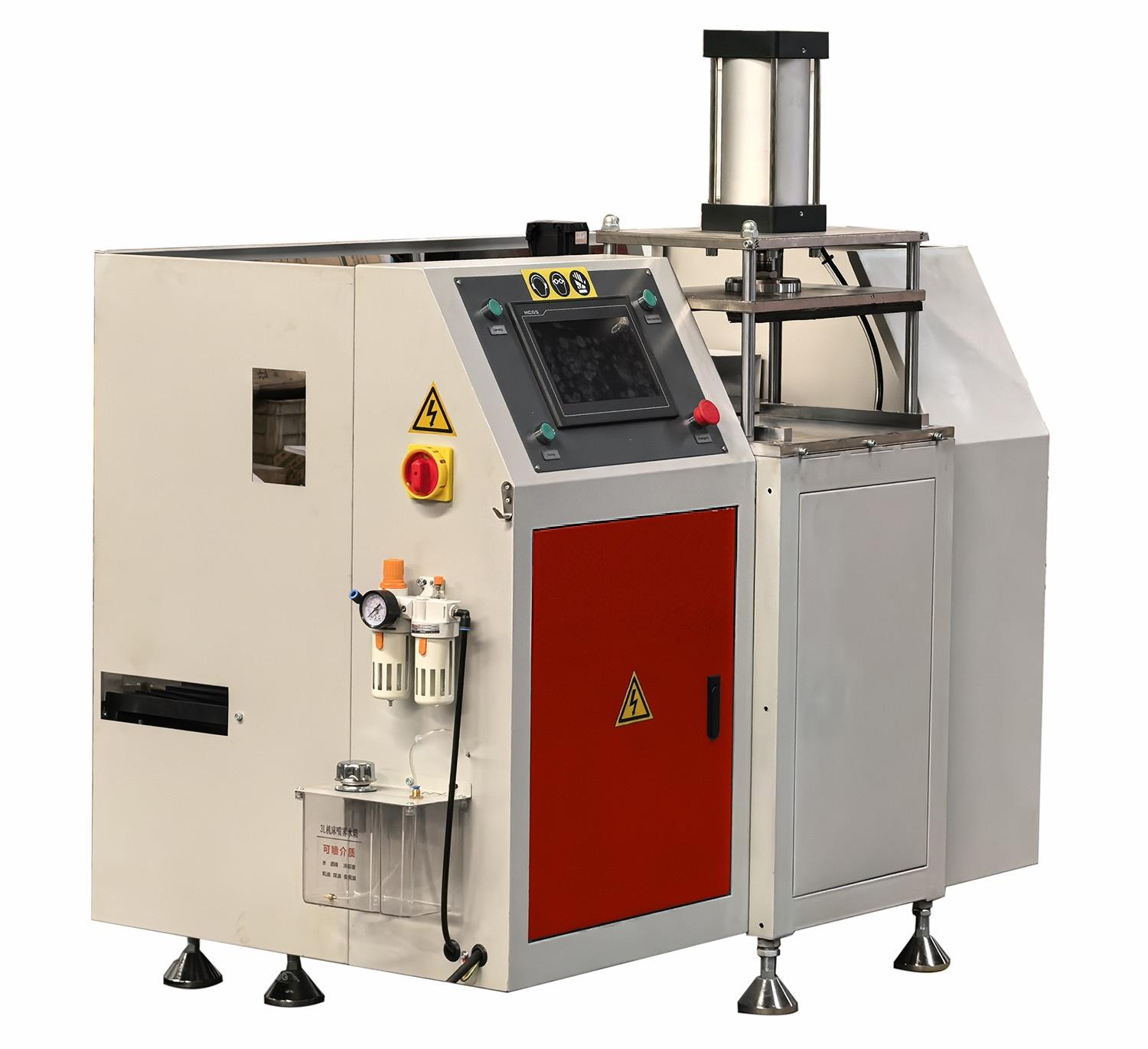

LXD3-CNC-300ECNC End-milling Machine

Brief Introduction

This machine is one of the special equipment for processing aluminum door and window mullion profiles. It is suitable for forming processes such as end faces, step faces, edge trimming, and rectangular slot drilling of various profiles. Different profiles can be processed by adjusting the tool position without tool replacement. Absorbing the advantages of similar domestic and foreign products, this new model is meticulously developed and produced by our company. It features a compact overall structure, wide processing range, convenient operation and high production efficiency.

Features

◆Adopts high-precision CNC system control with three-axis linkage.

◆The tool can be adjusted up and down, back and forth via CNC control, ensuring high milling accuracy and quick adjustment to adapt to the processing of aluminum profiles of different shapes and sizes.

◆Uses servo motor and rack-and-pinion structure to drive tool feeding. The feeding speed is adjustable, with slow cutting and high-speed retraction for more stable and efficient processing.

◆The special spindle motor is equipped with a fixed horizontal milling cutter, which can be flipped 90° by an air cylinder for milling reinforced mullion profiles.

◆The tool travel distance can be controlled by the system, greatly improving processing efficiency.

Thickened profile pressing plate prevents profile deformation.

◆Adopts fully enclosed mechanical cover structure, making processing safer, more environmentally friendly and hygienic.

Technical Parameter

Input Power Supply: 380V 50Hz

Input Power: 5.5 Kw

Working Air Pressure: 0.5-0.8Mpa

Air Consumption: 180L/min

Motor Speed: 2800r/min

Spindle Diameter: φ30mm

Milling Cutter Diameter: φ300mm

Aluminium window milling machines are used to process hardware installation holes and slots, profile end and other holes or slots in aluminium windows and doors, and it is an important component part of aluminium window production line. Milling hardware holes or slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of aluminium windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. Aluminium window milling machines include end milling machine, lock hole & slot milling machine, copy routing machine, and so on.
