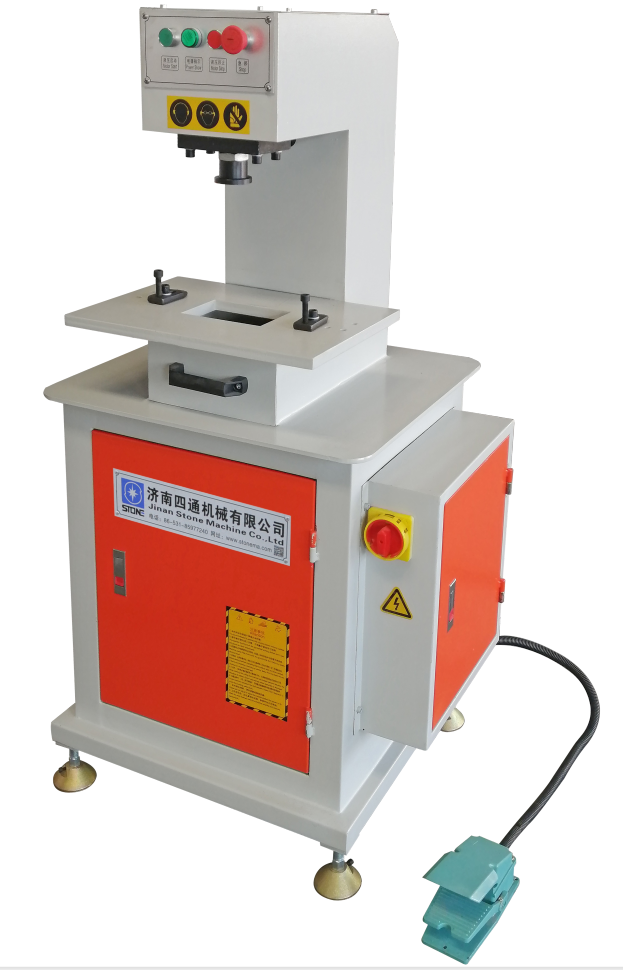

LY-30Single-head Pressing Machne

Brief Introduction

The single-head press is special equipment for assembling aluminum alloy and plastic-steel doors and windows. It is suitable for the stamping process of aluminum alloy and thermal break profiles. Each combined die matched with this equipment can complete one or several stamping processes. Stamping processing of doors and windows of different specifications and series can be realized by replacing different stations.

Technical Parameter

Input Power Supply:380V 50Hz

Motor Power: 1.50KW

Motor Speed: 1420r/min

Rated Oil Pump Pressure: 16Mpa

Oil Pump Model: 5MCY

Oil Tank Capacity: 30L

Nominal Pressure of Press: 50KN

Stamping Stroke: 30mm

Stroke Frequency: 30 times/min

Closed Height: 180mm

Host overall dimension:  750×750×1800mm

Pressing Machine for Aluminum Profile is used to punch and cut various profiles for aluminum door & window. Open-type construction enables flexible operation positions. Rotatable work table enables convenient switchover among six sets of molds.
The aluminum door-window punching machine can punch grooves for handles and drain slots, cut corners, and punch holes (φ10mm, φ6mm) for transmitter ends.
