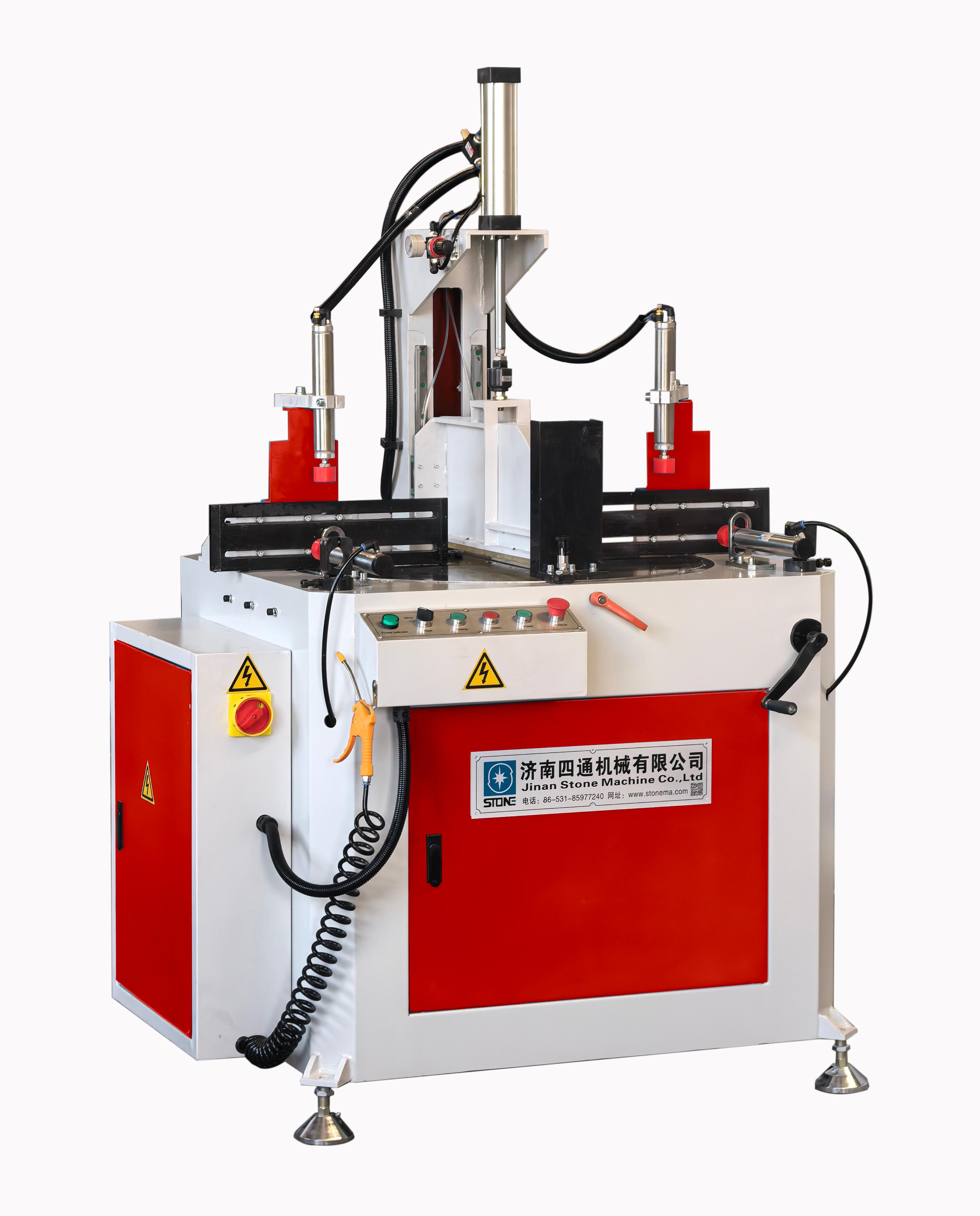

DT-550Single-head Variable-angle Cutting Saw

Brief Introduction

The single-head cutting saw is used for cutting door and window aluminum profiles and curtain wall aluminum profiles at arbitrary angles. Designed for the characteristics of high precision and special angle processing of aluminum doors and windows, its cutting size accuracy and angle accuracy reach or approach the international advanced level, making it an ideal equipment for aluminum door and window production.

Features

◆ Variable angle cutting between 0-180° (±45° and 90° are calibrated accurately before leaving the factory, and other angles can be calibrated and positioned according to the scale).

◆ The saw blade moves up and down in a straight line under the workbench, which has high safety and can perform ultra-wide cutting.

◆ Casting integrated drill disc structure, with advantages of high precision and small deformation. ◆ The angle can be easily converted by rotating the disc with a hand-wheel and gear-rack structure.

◆ Special precision cemented carbide saw blade, the cutting feed motion guide rail adopts linear guide rail pair, and the feed guide rail is equipped with an oil injection system.

◆ The saw blade feed is powered by a combination structure of oil cylinder and air cylinder, with stable and strong power;

◆ High-precision main shaft ensures stable rotation of the saw blade.

◆ Automatic lifting saw blade protective cover makes the work safe and reliable.

◆ Horizontal and double vertical clamping of profiles.

Technical Parameter

Input power supply: 380V 50Hz

Input power: 3.00Kw

Working air pressure: 0.5-0.8Mpa

Saw blade rotation speed: 3100r/min

Saw blade specification: D=550mm d=30mm

Cutting width: 250mm (90°)

Cutting height: 175mm

Sawing angle: ±45° and 90°

Host overall dimension: 1300×1050×1840mm

Aluminum profile cutting machine is major and essential equipment for manufacturing aluminum windows and doors. Cutting is the beginning of making aluminum windows, and one of most important manufacturing procedures in the whole window manufacturing process. The cutting accuracy (such as accuracy error of cutting length, accuracy error of cutting angle) will affect the corner crimping accuracy and corner crimping strength of aluminum windows, and then affect the size accuracy and angle accuracy of finished aluminum windows. STONE Window Machinery guarantees the cutting quality of the aluminum profile cutting machine through use of high quality hard-alloy saw blades, high accuracy liner bearing motional pairs and headstock, and other high quality machine components, and through our strict quality control system. Aluminum profile cutting machines mainly includes double-head cutting saw, single-head cutting saw, corner connector cutting saw, and so on.
