Equipment Introduction

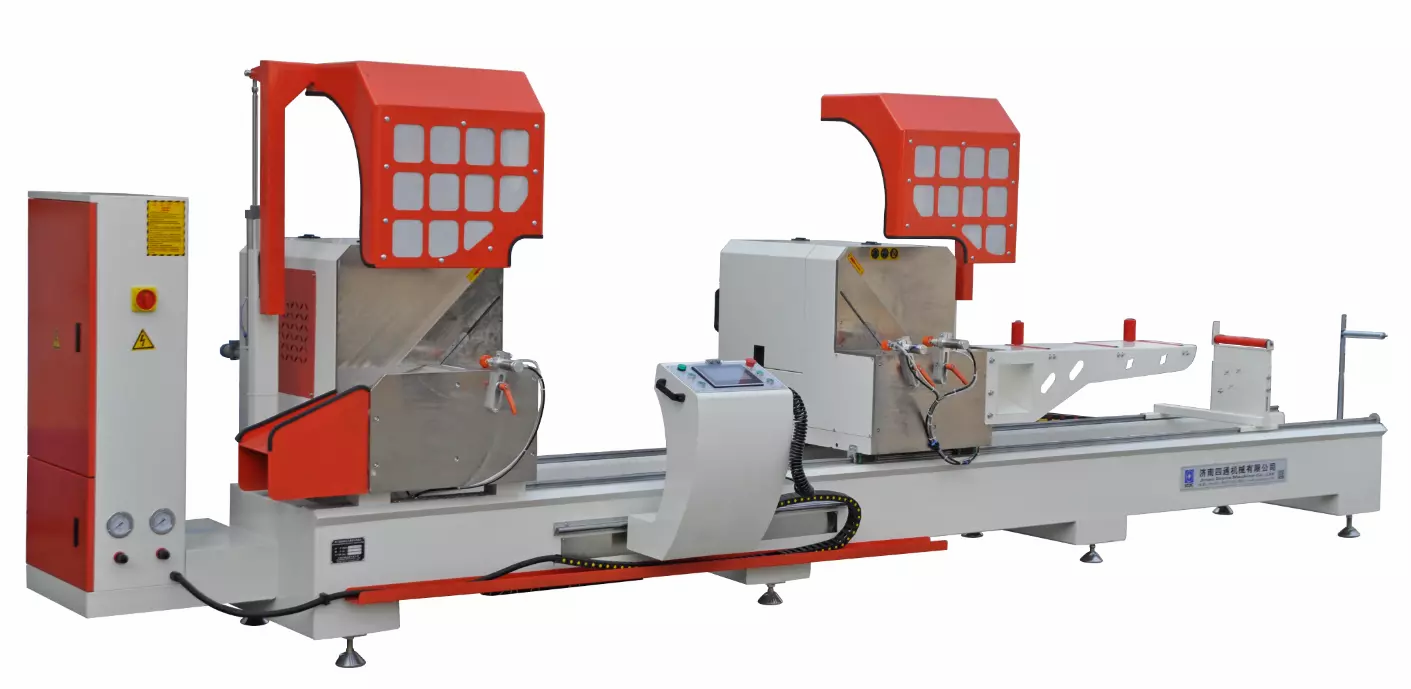

The Aluminum-Plastic Profile High-Efficiency Double-End Cutting Saw (45° Cutting Saw) is used for cutting door and window aluminum-plastic profiles, curtain wall aluminum profiles, decorative aluminum profiles, and industrial aluminum profiles. This machine is designed for the high precision and high efficiency required in processing broken bridge aluminum alloy doors and windows. Its cutting dimensional accuracy and angular accuracy meet or approach internationally advanced levels, making it an ideal equipment for large-scale production of aluminum alloy doors and windows and the home renovation industry.
Equipment Features
◆ Equipped with a CNC sizing system for digitally controlled cutting lengths, ensuring accurate cutting dimensions.
◆ Features a liquid crystal touchscreen display for automatic control of cutting length, cutting angle, and cutting quantity.
◆ Parameters such as profile cutting length are displayed digitally.
◆ Utilizes specialized precision hard alloy saw blades with an automatic spray cooling system.
◆ Saw blade feed is powered by a pneumatic-hydraulic hybrid device, ensuring uniform feed speed and smooth movement.
◆ Imported spindle motor provides ample power and high precision.
◆ Automatic opening and closing protective cover ensures safe and reliable operation.
◆ Cutting feed motion adopts a rectangular linear bearing movement pair, effectively guaranteeing feed accuracy.
◆ Two machine heads can work simultaneously or independently.
◆ A single cut meets the requirements for both the cutting length and the cutting angles at both ends of the aluminum profile.
Technical Parameter
Input Power: 380V 50Hz (Optional)
Rated Power: 7.0 kW
Working Air Pressure: 0.5–0.8 MPa
Saw Blade Speed: 3100 r/min
Saw Blade Specification: D=500 mm, d=30 mm
Cutting Length Range: 540–4200 mm
Cutting Angle: 45°
Cutting Width × Height: 140 × 145 mm
Profile Cutting Angle Error: ±5′
Profile Cutting Length Error: ±0.2 mm
Overall Dimensions: 5800 × 1750 × 1600 mm
Aluminum profile cutting machine is major and essential equipment for manufacturing aluminum windows and doors. Cutting is the beginning of making aluminum windows, and one of most important manufacturing procedures in the whole window manufacturing process. The cutting accuracy (such as accuracy error of cutting length, accuracy error of cutting angle) will affect the corner crimping accuracy and corner crimping strength of aluminum windows, and then affect the size accuracy and angle accuracy of finished aluminum windows. STONE Window Machinery guarantees the cutting quality of the aluminum profile cutting machine through use of high quality hard-alloy saw blades, high accuracy liner bearing motional pairs and headstock, and other high quality machine components, and through our strict quality control system. Aluminum profile cutting machines mainly includes double-head cutting saw, single-head cutting saw, corner connector cutting saw, and so on.
