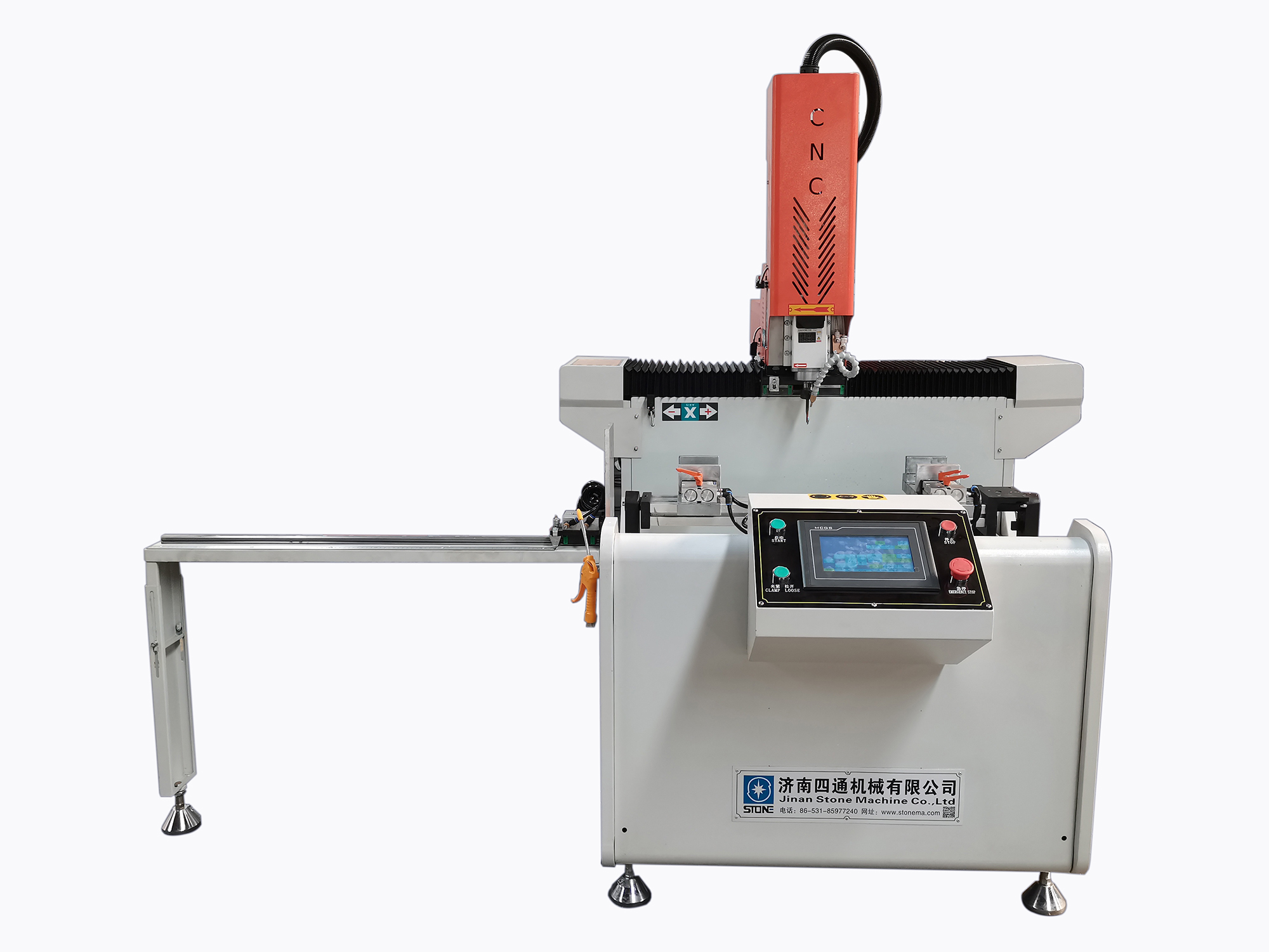

◆ This machine can achieve all kinds of aluminum profile holes, slot milling.
◆ Equipped with tool setting gauge, the length of the replacement tool will be compensated through the system automatically, it not only save time for correct the tools, but also improve the working efficiency.
◆ Equipped with heavy power high speed electric spindle, it’s features reliable performance, stable rotation, lower noise, strong milling capacity.
◆ It can realize three axis moves linkage or two axis mover separately.
◆ High precision linear guides, ball screw, rack and pinion and imported servo motor to ensure smooth. With high positioning and machining accuracy.
◆ The workable can be rotated in any position among -90,0,90 degree, it can complete three sides milling processing once clamp the profile.
Technical Parameter
Power supply: 380V 50Hz
Input power: 4.5Kw
X-axes travel: 0-600mm
X-axes speed: 20m/min
Y-axes travel: 0-270mm
Y-axes speed: 15m/min
Z-axes travel: -60-220mm
Z-axes speed: 10m/min
Aluminium window milling machines are used to process hardware installation holes and slots, profile end and other holes or slots in aluminium windows and doors, and it is an important component part of aluminium window production line. Milling hardware holes or slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of aluminium windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. Aluminium window milling machines include end milling machine, lock hole & slot milling machine, copy routing machine, and so on.
