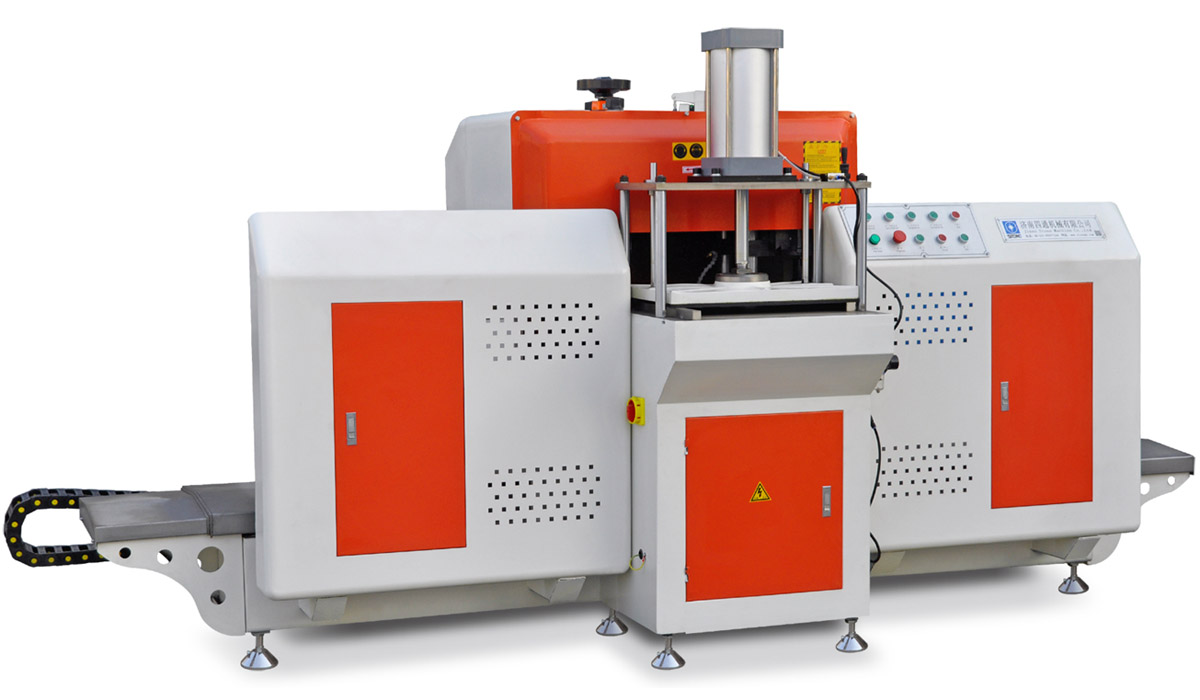

LXDJ6A-250Aluminum Profile Tenon Milling Machine


Product Details
Brief Introduction
The Aluminum Profile Tenon Milling Machine is used for end milling of aluminum curtain-wall profiles. With a large work bench and long cutting stroke, it can mill multiple aluminum profiles in one operation. With adjustable cutting tools, it is unnecessary to replace multiple cutting tools in case of changing aluminum profiles so as to save the production period and cost of cutting tools. Multiple sets of cutting tools can work simultaneously or separately based on different profiles. With bigger diameter of cutting tools, the quality of machined surface is better. The tenon milling machine is ideal equipment for mass production of aluminum curtain wall.

Features
The aluminum profiles are fixed in one position while the milling cutters are movable, which applies to the milling of long profiles in multiple quantities.
Six sets of cutting tools can be combined freely to any size according to customer’s requirement, and two sets of them can be adjusted in the range of 180°.
The required shape and size of tenon can be achieved in single work operation. And the milling cutters of different thickness can be made according to customer’s requirement.
Equipped with turbine speed reducer to make milling cutters move stably, which ensures the machining dimension of profiles.

Technical Parameter
Power supply: 380V 50Hz (optional)
Input power: 14.3Kw
Air pressure: 0.5~0.8Mpa
Motor rotational speed: 2800r/min
Main shaft diameter: φ32mm
Milling cutter diameter: φ250mm
Feeding journey of worktable: 1650mm
Worktable measurement: 510×480mm
Outside dimension: 4810×1340×1965mm
Weight (about): 2000Kg


Aluminum curtain wall machine is a mechanical equipment used for manufacturing and installing aluminum alloy curtain walls. It includes the main processes in the curtain wall production process, such as profile cutting, corner code production, curtain wall assembly, curtain wall installation, etc. The use of aluminum curtain wall equipment can help achieve engineering and automated production of curtain walls, improve construction efficiency and quality.
