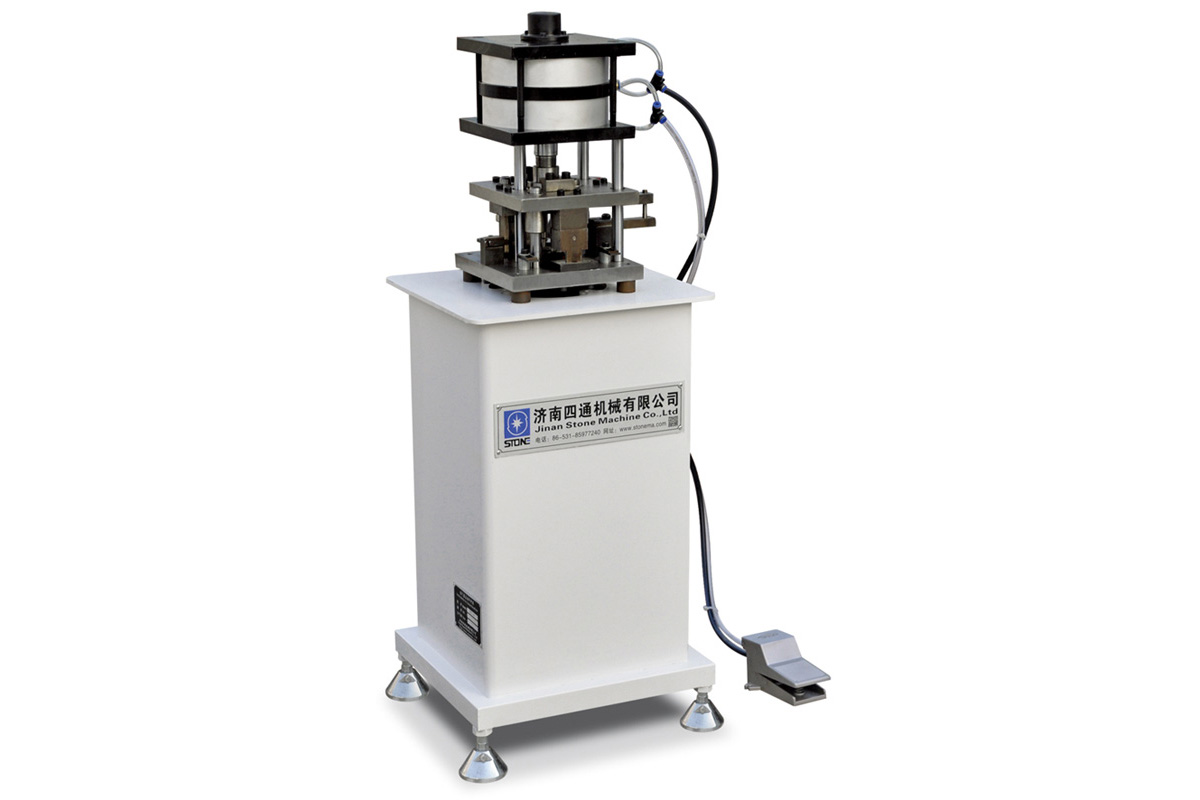

LY-16Punching Machine for Aluminum Door & Window

Brief Introduction
This machine is used to punch hardware holes and other holes or grooves in aluminum windows and doors. Pneumatic punching with multi-station makes punched holes smooth, and ensures high productivity. Driving system with pneumatic transmission makes punching process stable. The aluminum door-window punching machine can punch grooves for handles and drain slots, cut corners, and punch holes (φ10mm, φ6mm) for transmitter ends.

Technical Parameter
Model: LY-16
Nominal pressure: 16KN
Punching stroke: 30mm
Die size: 340×240×500mm
Outside dimension: 520×450×1200mm
Weight (about): 120kg

---

Pressing Machine for Aluminum Profile is used to punch and cut various profiles for aluminum door & window. Open-type construction enables flexible operation positions. Rotatable work table enables convenient switchover among six sets of molds.
The aluminum door-window punching machine can punch grooves for handles and drain slots, cut corners, and punch holes (φ10mm, φ6mm) for transmitter ends.
