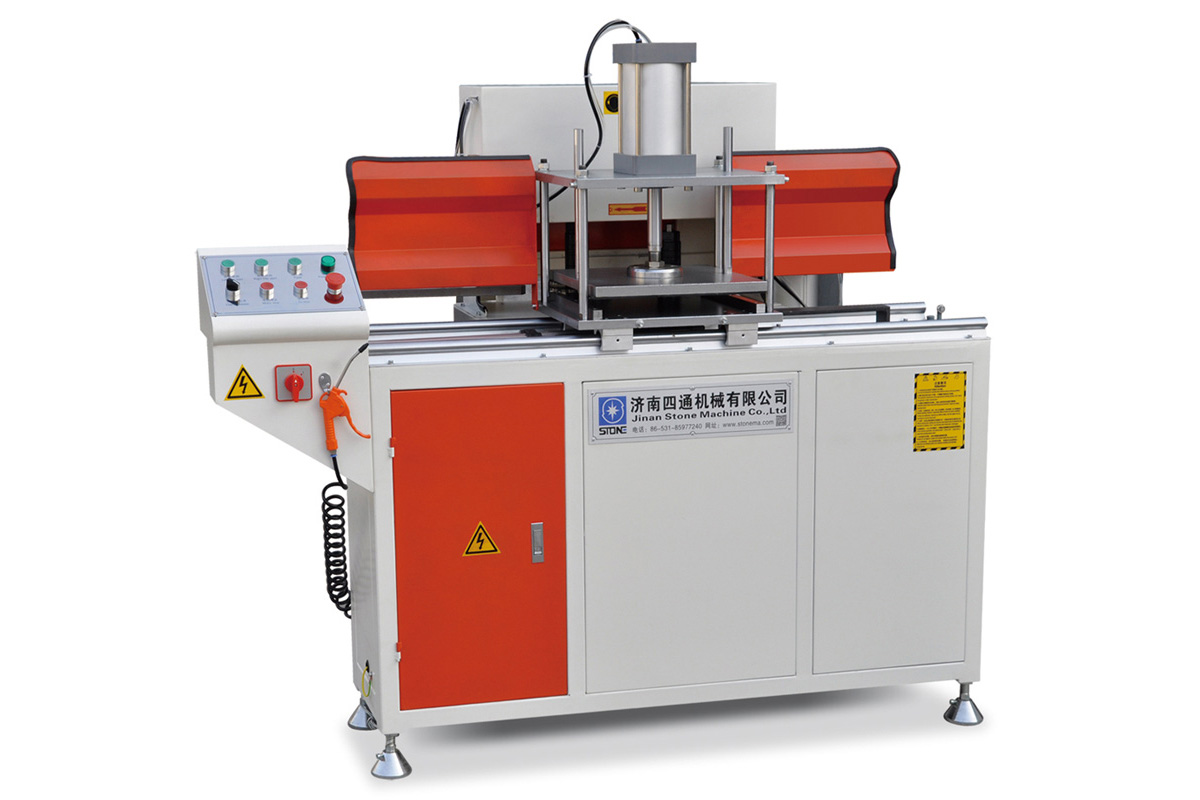

LXD-230Aluminum Profile End Milling Machine

Brief Introduction
The machine is used for end milling of aluminum profiles. With height-adjusable and position-adjustable cutter, it can mill different kinds of profiles, saving the production period and cost of cutting tools. With a large work bench and long cutting stroke, it can mill 4-6 aluminum profiles in one operation, high efficiency.
Hydraulic damping cylinders push profiles’feeding, making the machine run stably.
The rubber gasket on clamping plate can stop profile damage and deformation.

Technical Parameter
Power supply: 380V 50Hz
Input power: 4.4Kw
Air pressure: 0.5-0.8Mpa
Air consumption: 150L/min
Motor rotational speed: 2800r/min
Main shaft diameter: φ32mm
Milling cutter diameter: φ230mm
Outside dimension: 1650*670*1420mm
Weight(about): 300kg

---

Aluminium window milling machines are used to process hardware installation holes and slots, profile end and other holes or slots in aluminium windows and doors, and it is an important component part of aluminium window production line. Milling hardware holes or slots of windows is an important step in window-door manufacturing procedure. The quality of these holes or slots will have a direct influence on the quality of windows and doors. Qualified hardware holes and slots not only improve the visual sense of beauty of aluminium windows and doors, but guarantee the fastness and durability of hardware which increases the safety factor of windows and doors. Aluminium window milling machines include end milling machine, lock hole & slot milling machine, copy routing machine, and so on.
