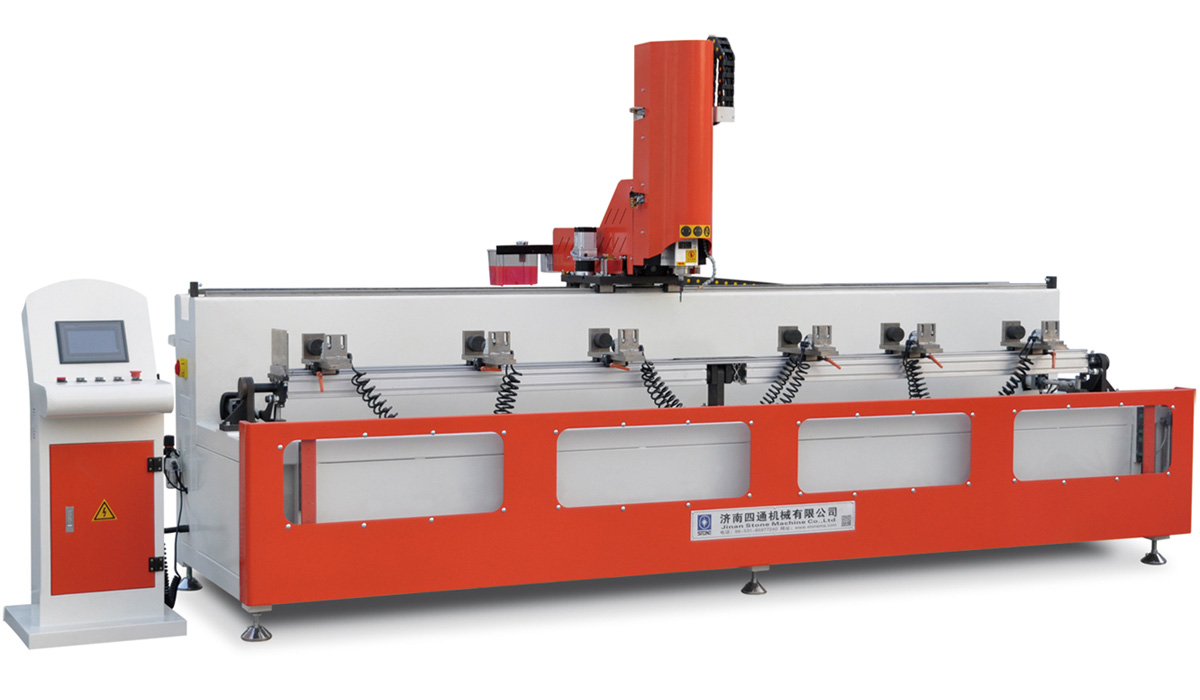

LMGJ-CNC-3500CNC Drilling & Milling Machine for Aluminum Profile

Features
Suitable for milling round holes, slot holes, lock holes, shaped holes on industrial aluminum profiles, doors and windows, curtain wall aluminum profiles.
The spindle adopts air-cooled electric spindle, with a speed of 0 ~ 18000 rpm, high precision, good safety and high reliability.
Adopt CNC control system, simple operation, high efficiency, low labor intensity.
All kinematic pairs adopt high-precision guide rails and sliders, the X-axis adopts high-precision helical gear and helical rack transmission, and the Y-axis and Z-axis adopt high-precision ball screw transmission. The transmission is stable, and the accuracy of the whole machine is effectively improved.
Turn the worktable by 180 degrees.-90 ° ~ 0 ° ~ + 90 °, three-side processing can be realized by one-time clamping of the profile, and deep hole processing can be realized by turning the worktable when processing deep through holes (special-shaped holes), so that the efficiency is improved and the quality is good.
The manual pump oil supply system is adopted, and the system control spray cooling device is adopted for the cutter.
Equipped with automatic lifting protective cover, it is safer during processing.

Technical Parameter
Input power: 380 V 50Hz
Total power: 6.00 kw
Spindle motor: 3.50 KW
X-axis servo motor: 0.75 KW
Y-axis servo motor: 0.75 KW
Z-axis servo motor: 0.75 KW
Working pressure: 0.5 ~ 0.8 MPa
Maximum speed: 18000rpm
X-axis stroke: 3500 mm  (when the workbench is at 0 degree working surface)
Y-axis stroke: 350 mm
Z-axis stroke: 280mm
X-axis speed: Max 30000 mm/min
Y-axis and Z-axis speed: Max 15000mm/min
Positioning accuracy: X axis: ≤ ± 0.3mm
Y-axis: ≤ ± 0.20 mm
Z-axis: ≤ ± 0.20 mm
Dimension: 4000 × 1900 × 2200

---
